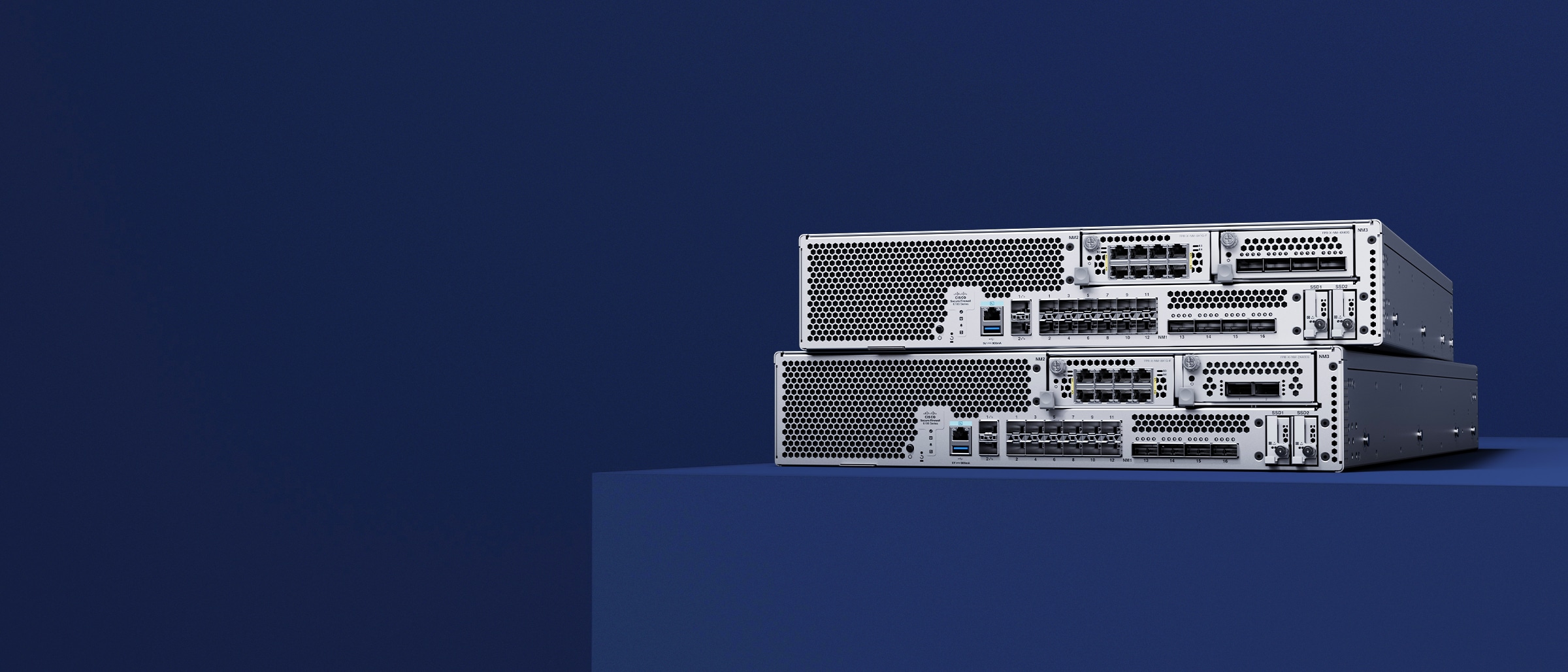

Cisco Secure Firewall 6100 Series

Highest Performance Density for AI-Ready Data Centers

Up to 8 Tbps threat inspection in a 2RU chassis. The 6100 Series delivers 5x better price-performance with 80% less rack space and 60% less power than comparable data center firewalls.

Get a Quote Download Data Sheet ›

Why Organizations Choose the 6100 Series

Purpose-built for the highest-performance data center and service provider environments where terabit-scale threat inspection is a requirement.

Terabit-Scale Threat Inspection

Inspect up to 8 Tbps of traffic with line-rate threat protection. Hardware crypto offload handles encrypted traffic inspection at data center scale without performance degradation.

80% Less Space, 60% Less Power

Consolidate your data center security infrastructure with a 2RU chassis that replaces multiple racks of legacy firewalls while reducing power consumption by more than half.

Built-In Zero-Day Protection

SnortML machine learning engine and Encrypted Visibility Engine work together to detect and block threats in encrypted traffic — without decryption or signature updates.

Carrier-Grade Security

Purpose-built for service providers, 5G infrastructure, and large-scale data centers requiring the highest throughput and lowest latency.

Compare 6100 Series Models

Two models designed for the most demanding data center and service provider environments.

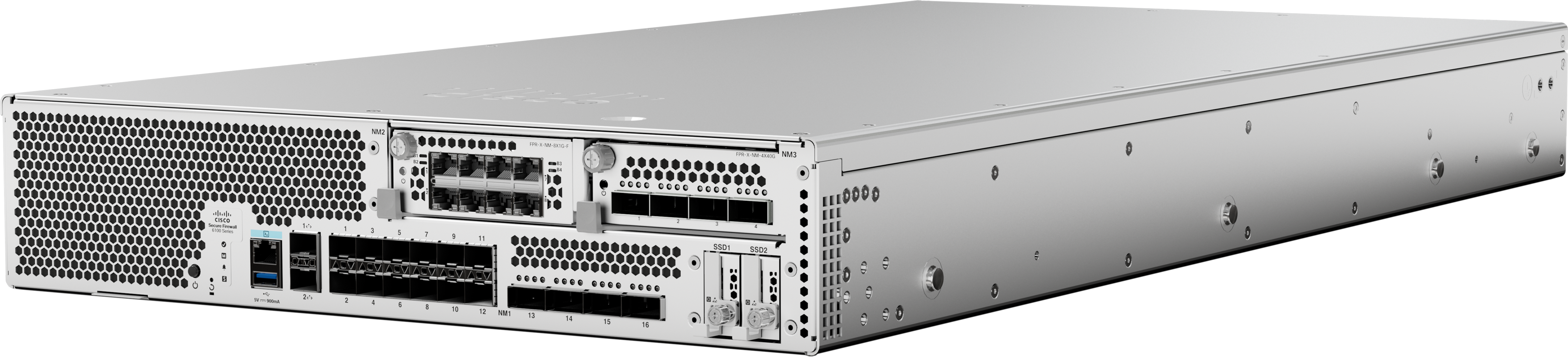

Cisco Secure Firewall 6160 Data Center

Secure Firewall 6160

High-performance data center firewall with 520 Gbps NGFW throughput and 100 Gbps encrypted traffic inspection.

  • •NGFW 520 Gbps
  • •IPS 500 Gbps
  • •VPN 400 Gbps
  • •TLS Decryption 100 Gbps
  • •75M concurrent sessions
  • •12x SFP56 + 4x QSFP56
  • •2RU form factor
Explore 6160
Cisco Secure Firewall 6170 Data Center

Secure Firewall 6170

Top-tier data center firewall with 635 Gbps NGFW throughput and 150 Gbps encrypted traffic inspection.

  • •NGFW 635 Gbps
  • •IPS 570 Gbps
  • •VPN 490 Gbps
  • •TLS Decryption 150 Gbps
  • •105M concurrent sessions
  • •12x SFP56 + 4x QSFP56
  • •2RU form factor
Explore 6170

Product Comparison

Side-by-side specifications for the 6160 and 6170 to help you choose the right model.

Specifications

Best for

Large Data Centers

Secure Firewall 6160

Best for

Service Providers & AI Data Centers

Secure Firewall 6170

Performance
NGFW Throughput
520 Gbps
635 Gbps
IPS Throughput
500 Gbps
570 Gbps
VPN Throughput
400 Gbps
490 Gbps
TLS Decryption
100 Gbps
150 Gbps
Concurrent Sessions
75M
105M
New Connections/sec
3.8M
5.3M
Cluster Throughput (4 units)
Up to 2 Tbps
Up to 2.5 Tbps
Interfaces
Fixed Ports
12x SFP56 + 4x QSFP56
12x SFP56 + 4x QSFP56
Port Speeds
1/10/25/50G + 40/100/200G
1/10/25/50G + 40/100/200G
Management
1x GbE + 1x console
1x GbE + 1x console
Physical & Power
Form Factor
2RU
2RU
Dimensions (HxWxD)
3.5″ x 16.9″ x 32.5″
3.5″ x 16.9″ x 32.5″
Weight
66 lbs
66 lbs
Power Supplies
2x PSU (up to 3000W)
2x PSU (up to 3000W)
Typical Power
1,740W
2,010W
Storage
2x 3.6TB
2x 7.2TB
High Availability
Clustering
Up to 4 units
Up to 4 units
HA Mode
Active/Standby
Active/Standby

Explore 6160
Explore 6170

Frequently Asked Questions

The Cisco Secure Firewall 6100 Series is a family of high-performance data center firewalls designed for the most demanding environments. Available in two models — the 6160 and 6170 — the series delivers up to 635 Gbps of NGFW throughput and up to 8 Tbps of aggregate threat inspection when clustered. It is purpose-built for large enterprise data centers, service providers, and AI-ready infrastructure.

The 6170 is the higher-performance model, offering 635 Gbps NGFW throughput (vs. 520 Gbps on the 6160), 150 Gbps TLS decryption (vs. 100 Gbps), 105 million concurrent sessions (vs. 75 million), and 2x 7.2TB storage (vs. 2x 3.6TB). Both models share the same 2RU chassis, interfaces, and clustering capabilities. The 6160 is ideal for large data centers, while the 6170 targets service providers and AI-scale workloads.

The 6100 Series supports clustering of up to 4 units (with 16-unit clustering planned for a future release). Clustering allows multiple appliances to operate as a single logical firewall, providing seamless load balancing, failover, and aggregate throughput measured in terabits per second. This makes it possible to scale security capacity without redesigning your network architecture.

Yes. The 6100 Series includes a dedicated hardware crypto accelerator that delivers 100–150 Gbps of TLS decryption throughput without impacting firewall performance. Additionally, the Encrypted Visibility Engine uses AI-powered analysis to detect threats inside encrypted TLS 1.3 and QUIC traffic without requiring decryption, preserving both security and user privacy.

The 6100 Series delivers 5x better price-performance than comparable data center firewalls while using 80% less rack space and 60% less power. Its compact 2RU chassis replaces multiple racks of legacy appliances, and clustering eliminates the need for oversized individual units. This translates directly to lower capital costs, reduced power and cooling expenses, and more efficient use of data center real estate.

The 6100 Series can be managed through Cisco Security Cloud Control (cloud-based), Firewall Management Center (on-premises), or Cisco Defense Orchestrator for multi-device policy management. All options include the Cisco AI Assistant, which uses natural language to help create policies, identify unused rules, and generate compliance reports.

Find the Right 6100 Series Firewall for Your Data Center

Our Cisco-certified security specialists can help you select the right model, configure licensing, and plan deployment for your data center environment.

  • Volume and multi-year pricing
  • Cisco Smart Net Total Care bundling
  • Professional deployment and migration services
  • Response within one business day
